Fully Electric Universal Operating Table » OT-2200

1

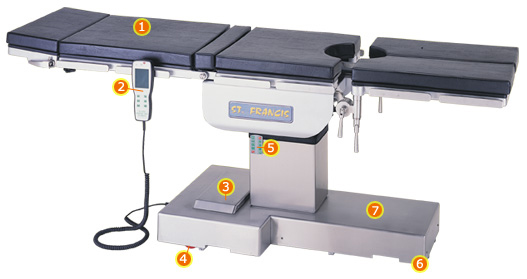

Table to consists of five sections coverd with detachable electric conductive fiber mattress to provide high performance
flexibility. The head and leg boards can be removed manually.
2
Touch-screen coiled remote hand controller with precisely designed program provides versatile table top movement safety and
precisely patient position.
3
Ups powered supply recharge-able battery system has sufficient capacity for approx 100 operation. (Standard device for OT-
2200)
4
4 castors can roll both longitudinally and laterally.
5
Emergency override panel: An independent control panel with fail-safe system offers override function if remote control hand box
is not available. (Standard device for OT-2200)
6
4 electro-hydraulic floor locking supporters with auto-balance system keep the table stable.
7
The T-shaped base lends the table excellent stability and provides easy access for surgical team.
FEMORAL STEM FRACTURE LATERAL POSITION
NOSE AND THROAT PROCEDURES
TIBIA AND FIBULA FRACTURE POSITION
SURGICAL OPERATION FOR HAND AND ARM
VERICAL USE OF C ARM X-RAY
KNEE AND NECK OF FEMUR POSITION
DORSAL POSITION
NEUROSURGICAL POSITION
KIDNEY POSITION
RECTAL POSITION
GYNECOLOGICAL, UROLOGICAL AND LITHOTOMY POSITION

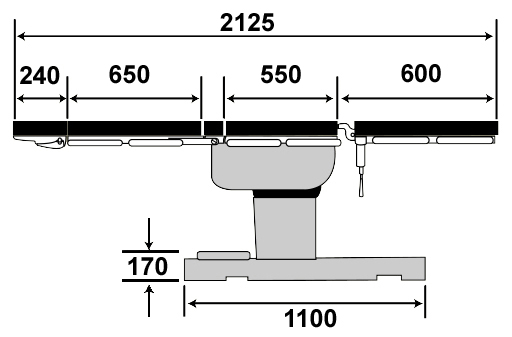

Table Dimension / mm

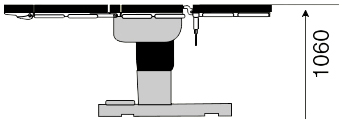

Table Top Elevation

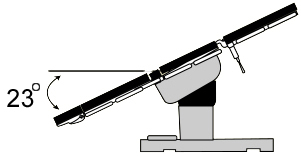

Trendelenburg / Reverse Trend
Lateral Tilt (Left / Right)

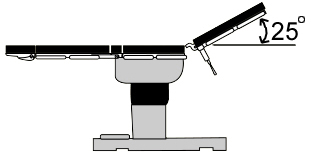

Back Section (Up)

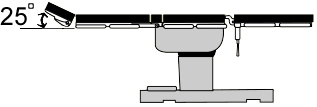

Head Section (Up)
Footplate
(Up / Down / Split Tilt)
Upward 60° is Available
Emergency Override Panel
OT-2200 Standard Accessories
Ups Battery Device
OT-2200 Standard Accessories
Wireless Remote Controller
Optional Accessories OT-1832
Elec. AC Input
110V OR 220V, 50 / 60Hz
Remote Controller Power
DC 12V
Table Weight (Approx)
285
Mattress Thick
5.5CM
Patient Weight Capacity
180KGS
Safety Standards
EN 61010-1, EN 1441,EN 60601-1-1-2, EN 60555-2, EN 61000-3-3,
IEC 801-3, IEC 801-4, EN 60601-1
